Autel PowerScan PS100 Electrical System Diagnostics
The PowerScan Tool is the most revolutionary circuit tester to date. Featuring AVOmeter, test light, built-in flashlight, short circuit indicator, relay/component tester, continuity tester and bad ground indicator, the PowerScan is truly the ultimate in power and affordability, allowing users to check circuitry in one single step. An absolute must for every technician looking for a fast and accurate solution to electrical system diagnostics.
Autel PowerScan PS100 Features:
Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation
Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip
With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.
Simultaneously uses the hot lead and the ground lead to activate components right in your hand
Instantly identifies positive, negative and open circuits
Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses
Instantly checks continuity of switches, relays and diodes
Circuit breaker protected
Built-in Flashlight enables you to work in the dark
Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment
20ft (extendable) cable provides excellent accessibility to test along the vehicle
Extremely easy to use and highly reliable
Autel PowerScan PS100 Specifications：
Display: TFT color display (160 x 128 dpi)
Operating Temperature: 0 to 60°C (32 to 140°F)
External Power: 12.0 or 24.0 V power provided via vehicle battery
Length\Width\Height: 126mm(4.96")\46.5mm(1.83")\35mm(1.38")
NW: 0.105kg (0.23lb),GW: 0.726 kg(1.6lb)

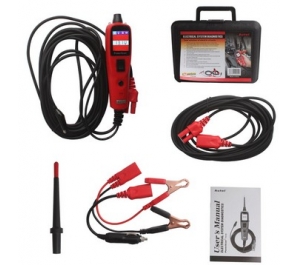

Autel PowerScan PS100 Package including:
1 × PowerScan PS100
1 × Rugged blow molded case
1 × 20ft. extension cable1 × Probe tip
1 × Battery hookup clips
1 × Cigarette lighter adapter
1 × User's Manual
