HTS-III Wireless Universal Automobile Diagnostic Scanner with PC Tablet
Supported Language: English
Description:
HTS-III Automobile Diagnostic Scanner is newly developed PC based wireless diagnostic scanner. It’s a highly integrated product with automotive electronic technology application and information network technology.Software have already been installed in the tablet PC, you can use it to diagnose the cars directly by clicking the diagnose software on the desktop interface.
Diagnose combination technology is the matter of the evolution of today's worldwide automotive diagnostic technology, but also the future development direction. Compared with other diagnostic tools, it has better quality and performance. It features smart design, portable, easy using, supporting multiple languages and wide-range use. Besides, wireless connection and data transfer are realized by Bluetooth for easy use.
Main Features for HTS-III:
1. New generation powerful diagnostic scanner with PC tablet.
2. Wireless Diagnose with Easy connection between PC and diagnosis box ( <100m)
3. Large vehicle coverage for more than 70 cars from Asia, european ,and USA..
4. Can test Engine, Transmission, ABS , Airbag , instrument cluster, AC/Heating electronics,Central Locking, etc.
5. Read & Clear Diagnostic Trouble Codes (DTCs)
6. Read live data Main ECUs in text, graph and analog for easy data review and analysis. Supports recording and playing back function
7. Display Two DataStream waveforms in one screen.
8. Program and Actuation test for Engine
9. Support immobilizer function.
10. Work voltage 12/24V
Main Unit : Tablet PC
System: Windows 8
RAM: 2G
Precessor: Intel(R) aTOM (TM) CPU N2600
HTS-III diagnostic Connector: DC12V/24V
Bluetooth: theoretically 100m, suggest 15-20m
Upgrading Interface: USB
Precautions on Operation:
1. The appliance is a sophisticated electronic device, never have it clashed when in use.
2. Make sure the HTS-III main unit (Tablet PC) is properly connected to the DIAGNOSTIC 3.CONNECTOR to avoid communication interruptions.
4. After operation, place the cables, connectors and other accessories into box
5. Handle with care and avoid crashing.
Precautions on Operating Vehicle's ECU
When diagnosing the vehicles that equipped with ECU, please note the following:
1. Do not disconnect the vehicle inner consumer when the ignition switch is on. High voltage transients may encounters at the moment of disconnecting, and thus may damage sensors and ECU.
2. Protect the computer from magnetic object (such as wireless speaker)
3. Do cut off the power supply of ECU system before welding on the vehicle.
4. Pay more attention to ECU and sensors when operation is next to them.
5. Ground yourself when you disassemble PROM, otherwise ECU and sensors will be damaged by static.
6. Do not use the pointer ohm meter instead of DMM for testing ECU and sensor without special requirement.
7. Do not test electric devices in relation with ECU with a test lamp unless otherwise expressly provided.
8. Do wear a metal ground strip that one end around your wrist and the other to the vehicle body when you get in and out the vehicle.
9. Do connect ECU harness connector firmly, otherwise electro elements, such as IC inside ECU, will be damaged.
1. Automotive batteries contain sulfuric acid that is harmful to skin. In operation, direct contact with the automotive batteries should be avoided. Pay attention not to splash the sulfuric acid into eyes. Keep ignition sources away from the battery at all times.
2. Engines produce various poisonous compounds (hydrocarbon, carbon monoxide, azote oxid, etc,) which should be avoided.
3. Avoid contacting high temperature assembly such as water tank and vent-pipe as the temperature of the running engine is very high.
4. Before starting engine, put the speed lever in the neutral position or in the P position to avoid injury.
5. Wear an ANSI-approved eye shield when testing or repairing vehicles.
6. If you are using the battery as a power source, connect the RED (+) battery clip to the positive of the vehicle battery and the BLACK (-) battery clip to the negative.

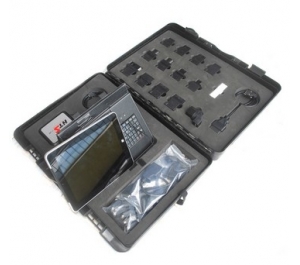

1pcXHTS-III Main unit (Tablet PC)
1pcXHTS-III Diagnose box
1pcXHTS-III Connectors
1pcXOBD II----16pin
1pcXOBDII Conversion line-16pin
1pcXNissan-14pin,
1pcXSsangyang-20pin
1pcXSsangyong-16pin
1pcXKia-20pin
1pcXSubaru-9pin
1pcXHonda-3pin
1pcXChrysler-6pin
1pcXMazda-17pin
1pcXToyota-17pin
1pcXBmw-20pin
1pcXGM/VAZ-12pin
1pcXDaewoo-12pin
1pcXToyota-22pin
1pcXFord-7pin
1pcXAudi-4pin
1pcXMitsubishi/Hyundai-12/16pin
1pcXFiat-3pin
1pcXSaihatsu-3pin
1pcXSuzuki-3pin
1pcXCitroen-2pin
