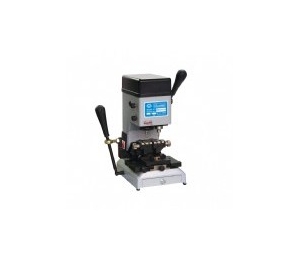

AN exclusive system with synchronized tilting axis
permits perfect duplication of keys with angular cuts.
The clamp can be slanted gradually and progressively
to any angle between 0 to 45 clockwise & counter-
clockwise. The horizontal carriage handle assembly
permits user easy of horizontal movement when
operating machine. Besides, with the speed
adjusting knob, you can adjust the cutter's R.P.M.
upon your requirement.

DIMENSIONS :
■ Width 380mm
■ Depth 500mm
■ Height 390mm
■ Net Weight 18kg
■ Gross Weight 20kg
■ Measurement 2.6 Cubic Feet

MOTOR :
■ Single- phase
■ 2P 60W
■ Rpm 3400
■ 110V or 220V
■ 50Hz or 60Hz
